Quick Detail:
1. Integrated powertrain system for pure electric vehicles, including motor, motor controller and lithium batteries
2. High quality grade A Lithium NCM batteries are used
3. high power PMSM motor is equipped
4. Reliable motor controller is adopted
Description:
7.5KW EV Powertrain Kit At 72V, Including Motor, Motor Controller And Lithium Battery Pack
Our technical team have devoted into new energy electric vehicles for more than 10 years. As we all know, the motor, motor controller and lithium batteries are the three key components of a electric car.
We can provide electric AC motor, motor controller (both ac motor controller and bldc motor controller), dashboard, dc-dc converter, etc.

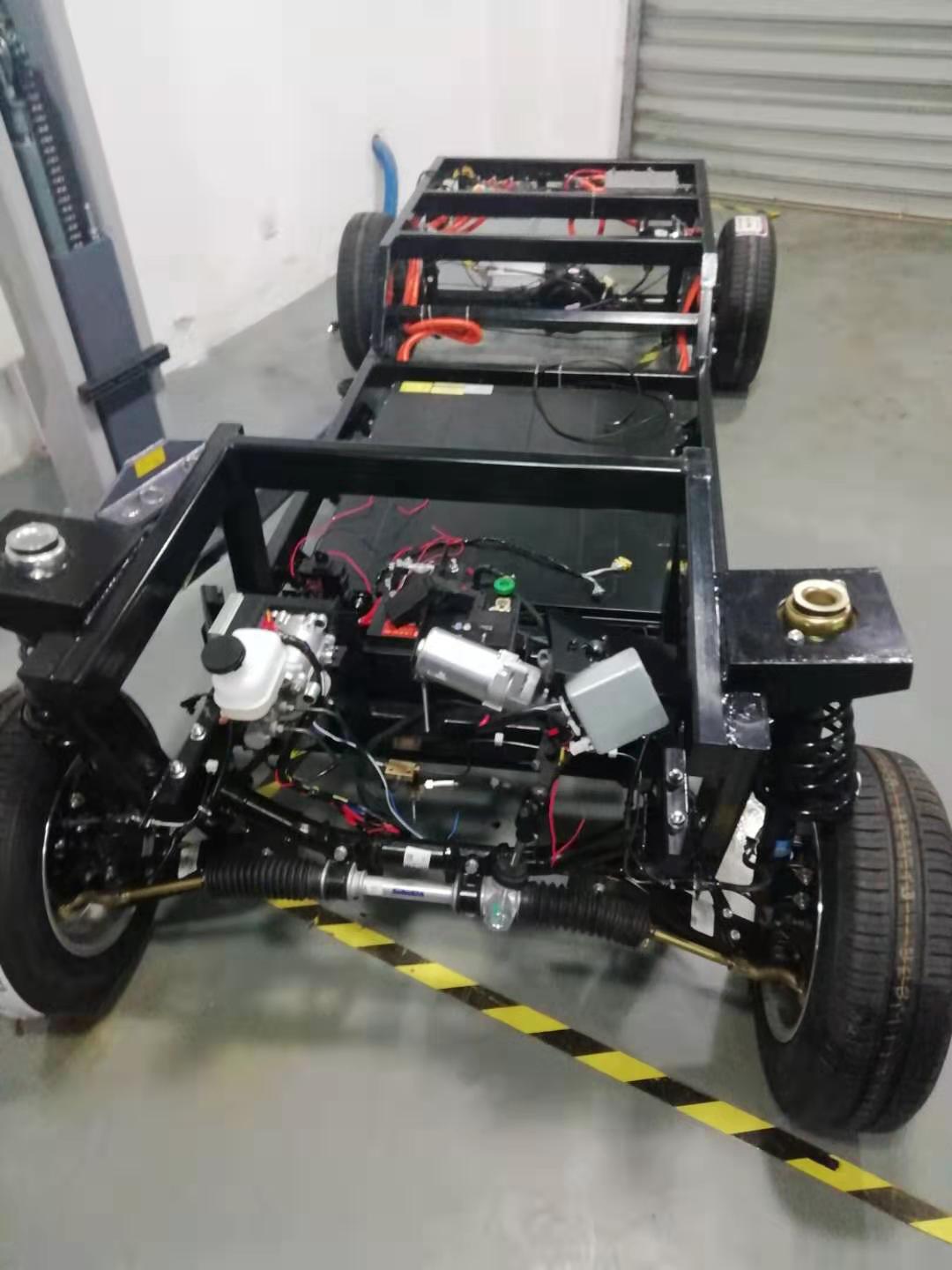

Our driving system is suitable for various types of electric vehicles, like golf cart, electric tricycle, electric tuk tuk, electric atv or utv, electric car (both for cargo or passenger).
This 15KW ev powertrain system has been applied in electric vehicle powertrain system are especially for those who want to retrofit their fuel cars to EVs.
Electric Motor
Motor controller
Lithium Battery Pack
Applications:
Electric vehicles, etc
Specifications:

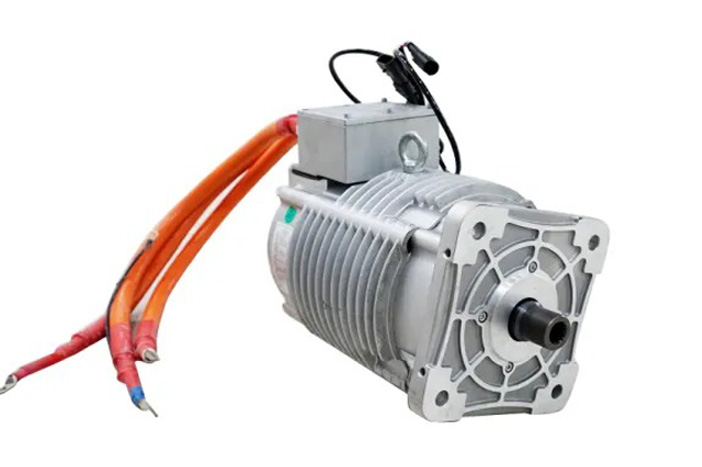

Electric Motor
| Continuous Working Watts | 7.5KW |
| Peak Working Watts | 15KW |
| Rated Torque | 24N.m |
| Peak Torque | 105N.m |
| Rated RPM | 3000 |
| Max. RPM | 6000 |
| IP level | IP56 |
| Insulation Grade | H |
| Weight | 28kg |

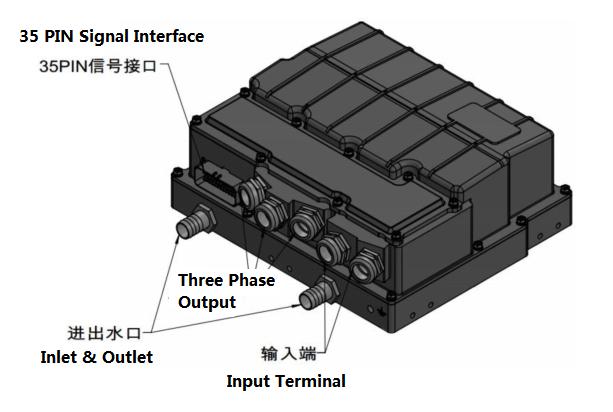

Motor Controller
| Rated input voltage | 72V DC |
| Max. output current | 400A DC |
| Rated Capacity | 12KVA |
| Max. Capacity | 24KVA |
| IP level | IP66 |
| Weight | 5.4KG |

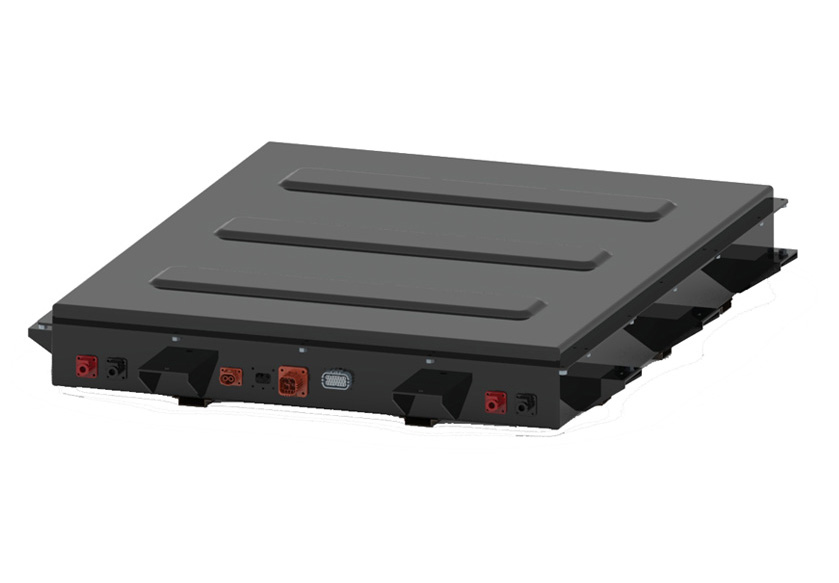

Lithium Battery Pack
| Rated Voltage | 72V |
| Rated Capacity | 11.5KWh / 160Ah |
| Rated Discharging Current | 160A |
| Peak Discharging Current | 300A |
| Rated Charging Current | 35A |
| Weight | 100KG |
| IP grade | IP65 |
Competitive Advantage:
1-Good Quality Management:
Our Pack production base for mass order has passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications. And we have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center. We always do daily production as per these systems.
2-Advanced hardware and software facilities
We established high-precision three-coordinate measuring machines, projectors, universal material tensile machines, and other measuring instruments to ensure the effective quality data.
3-Technical advantages:
Our technical team are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences. They have excellent R&D abilities. We also have the ability to develop BMS by ourselves.
4-Product advantage:
Motor and motor controller are reliable and extenstively tested before shipment.
The lithium battery pack are of high quality.
a. The cells we use are domestic high-quality cellsfrom China big cell manufacturers or imported cells from Sumsang, Panasonic.LG, etc .
b. BMS are realiable. BMS within 24S, we develop by ourselves. BMS above 24S, we purchase from China top 3 BMS manufacturers.
c. Advanced battery pack assembly technologies ensures the finished battery packs are of high quality.
