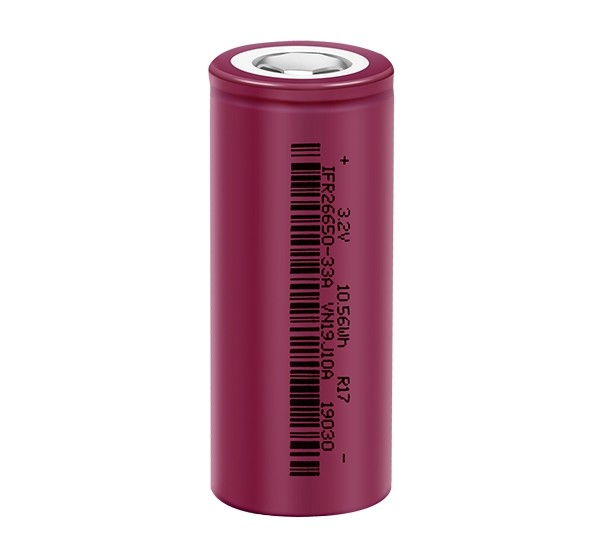

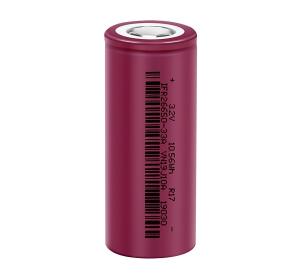

3000 Cycles IFR26650-33A 3.2V 3300mah LiFePO4 Battery Cells

Quick Detail:
1- Long cycle life: 3000+ cycles @100%DOD, 5000+ cycles @80%
2- Support continuous discharge rate of 3C and charge rate of 1C
3- excellent cell consistency performance
4- widely applied for low speed electric vehicles, such as electric scooters, A0 A00 electric cars, etc
5- high safety performace: no explosion nor fire

Description:
IFR26650-33A 3.2V 3300mAh LiFePO4(LFP) lithium iron phosphate battery cell is the upgraded li-ion battery for energy storage system, which has been passed The National Mandatory Inspection and widely used in power station, house-hold energy storage system, PV street light and so on.

• Specifications:

• Nominal voltage	3.2V
  Nominal capacity	3300mAh
  Minimum capacity	2970mah
  Cell type	LiFePO4
  Resistance	＜25mΩ
  Discharging cut-off voltage	2.0V
  Charging upper limit voltage	3.65V
  Max. charging current	1C
  Standard discharge current	1C
  Fast discharging current	2C
  Peak discharging current	3C
  Pluse discharging current	5C (60s)
  Dimensions	Diameter ≤26.3mm
  	Height: 65.2±0.3mm
  Weight	approx. 85g
  Operation temperature	0~45℃
  	-20~60℃
  Storage temperature	-20~45℃

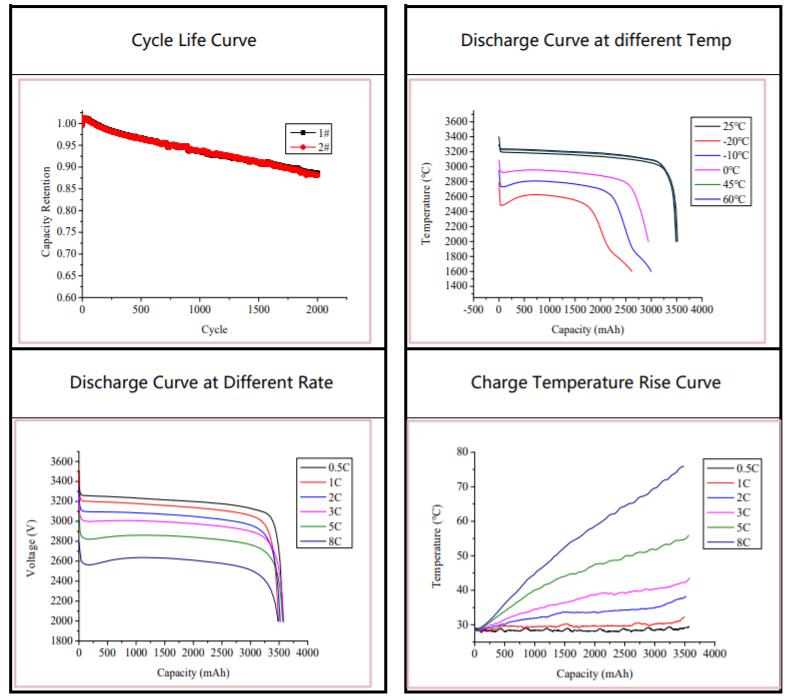

• Cell Characteristics Curve:

Competitive Advantages:
Company advantages:
1-Good Quality Management:
Our Pack production base for mass order have passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications. And we have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center. We always do daily production as per these systems.
2-Advanced hardware and software facilities
We established high-precision three-coordinate measuring machines, projectors, universal material tensile machines, and other measuring instruments to ensure the effective quality data.
3-Technical advantages:
Our technical team are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences. They have excellent R&D abilities. We also have the ability to develop BMS by ourselves.

Product advantages:
Our products are of high quality because
The cells we use are domestic high-quality cellsfrom China big cell manufacturers or imported cells from Sumsang, Panasonic.LG, etc .
BMS are realiable. BMS within 24S, we develop by ourselves. BMS above 24S, we purchase from China top 3 BMS manufacturers.
Advanced battery pack assembly technologies ensures the finished battery packs are of high quality.
